Clock, astronomical tabernacle, Munich, 1587
Record status
Individual type · partial
Period
1585-1600

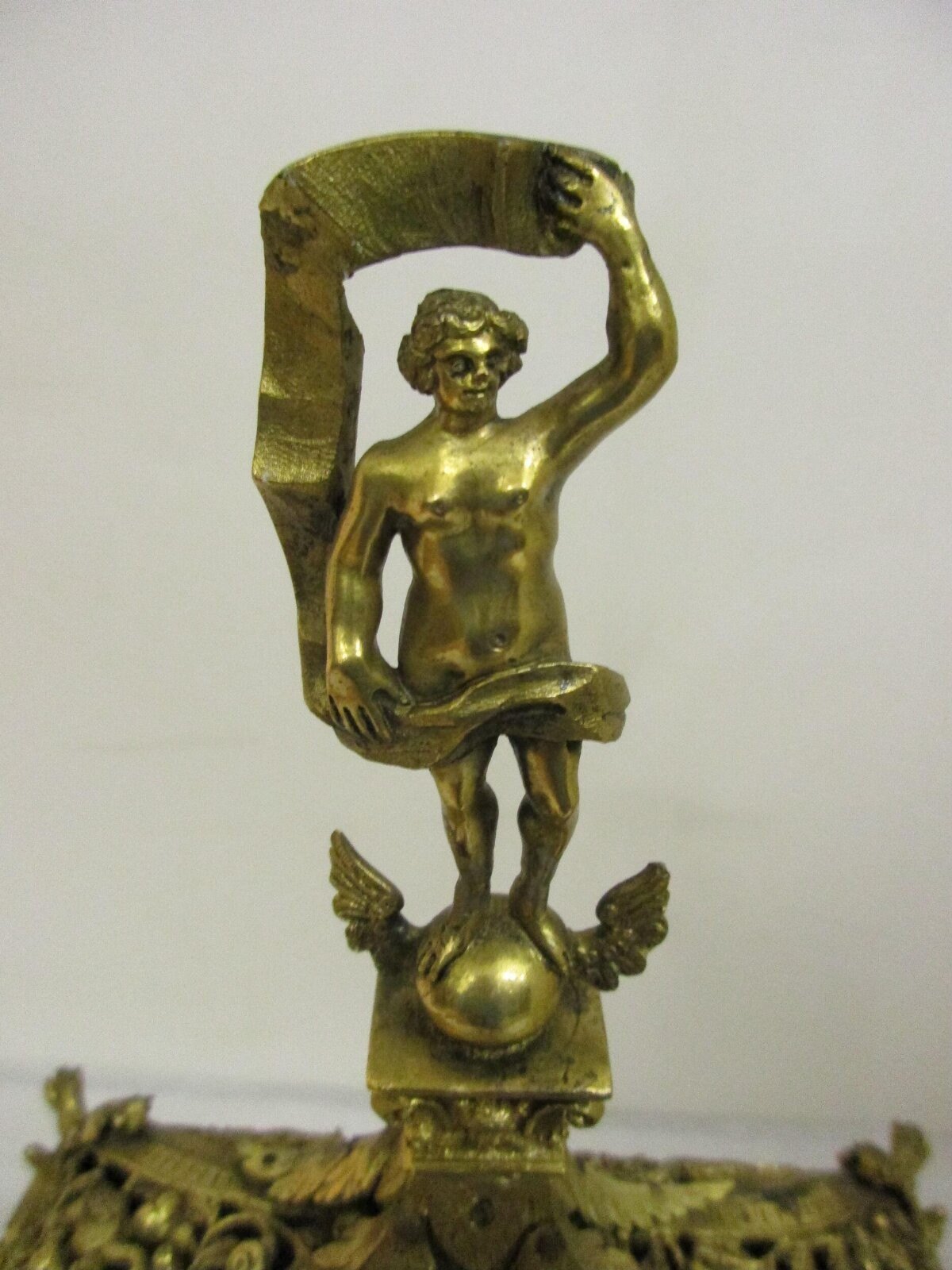

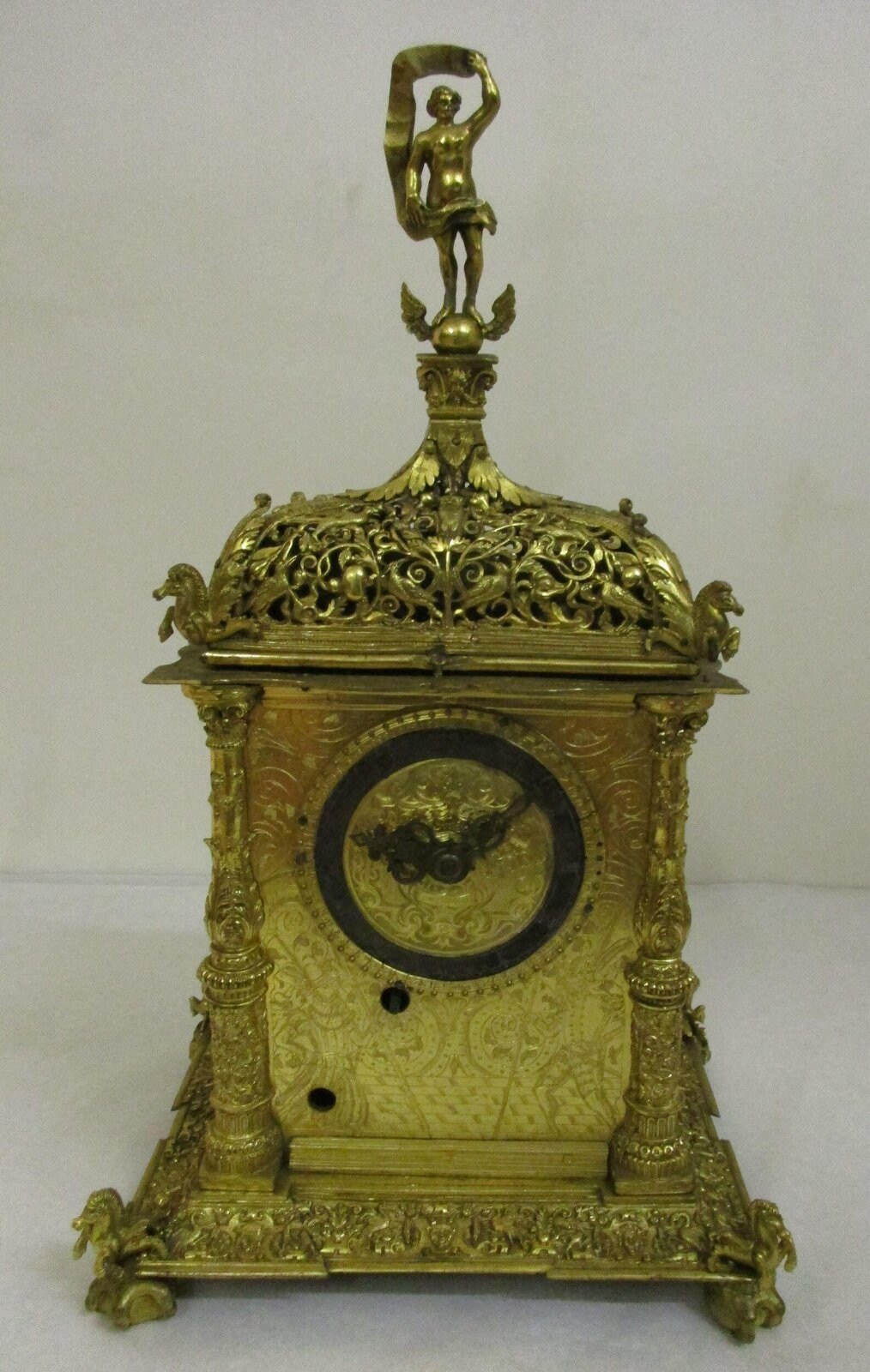

A gilt-metal architectural cased clock surmounted by a cupola with a statuette representing Fortune. There are ornamental columns at each corner and the lower section is chased with masks and ornamental cartouches. The cupola formed cover encloses two bells and is pierced and chased with scrolls and birds. The lower corners are decorated with sea horses.
The disc in the centre of the dial is inscribed 'Friede En Munich 1587'; Peace in Munich 1587. The clock was acquired at the sale of the collection of lawyer and politician Ralph Bernal in 1855. Square clock of gilded brass surmounted by a cast, gilded finial representing Fortune, supported by four ball and claw feet surmounted by sea horses. The sides and dial are engraved, gilded plaques framed by cast metal, gilded, columns. The base is cast and chased with grotesque ornament, the pierced cover cast with scrolls and birds. Case: Rectangular gilt copper alloy case of architectural form on flanged base supported by four ball-and-claw feet (probably later additions).

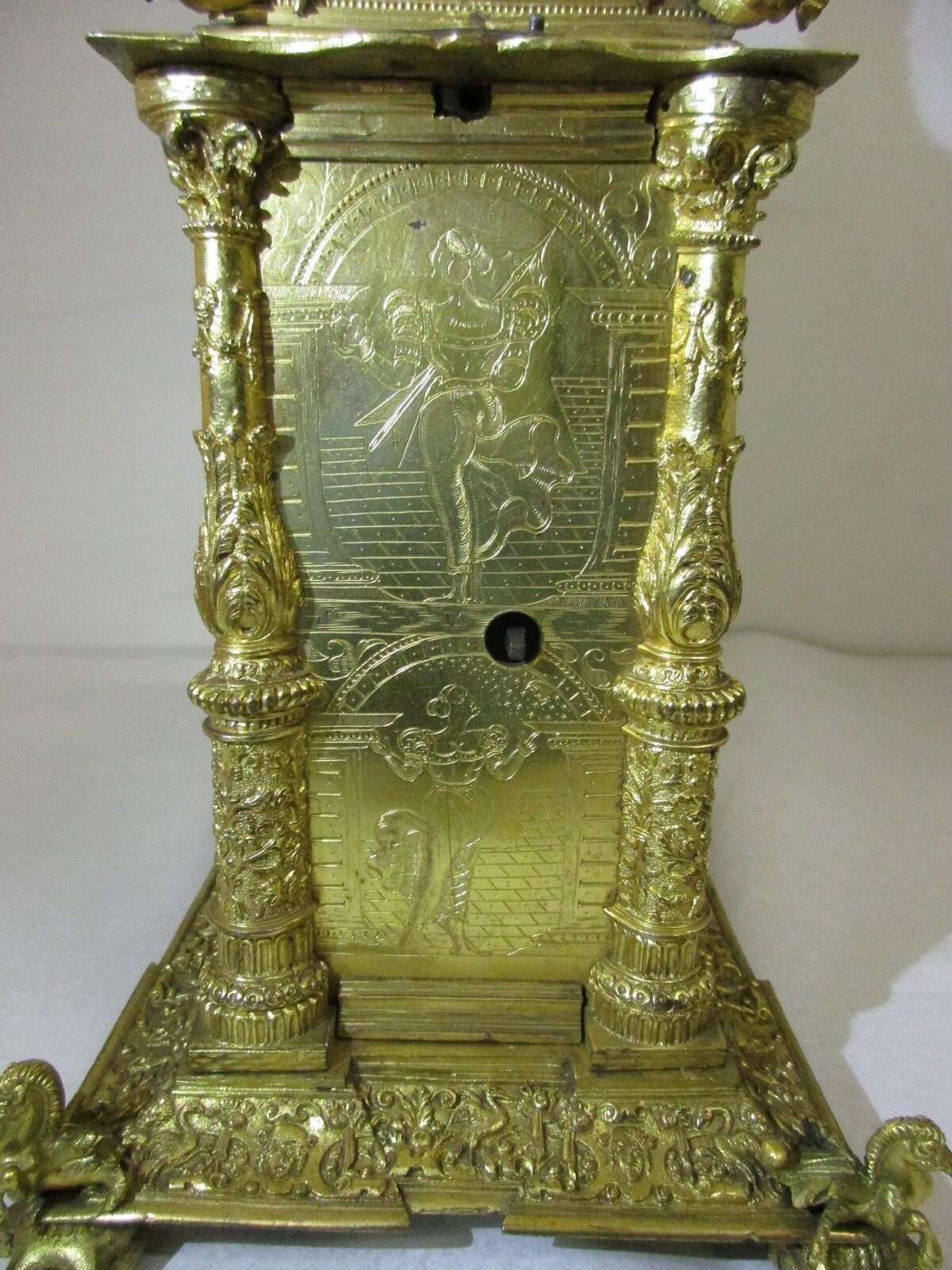

The base is cast and chased in relief with strapwork, foliage, birds, grotesque figures and mascerons. Applied hippocamps at the lower corners. At the corners above are multiple baluster-shaped three-quarter columns with Corinthian capitals decorated in relief with acanthus and other foliage and swags held in the mouths of the mascerons. The sides of the case and flanges of the dial are engraved with arabesques and strapwork, framing on the front; two landesknechts in 16th century dress and armour with halberds; on the back; David and Goliath; on the sides; paired figures in arches possibly representing the quadrivium of the Liberal Arts, Geometry, Arithmetic, Astronomy and Music.

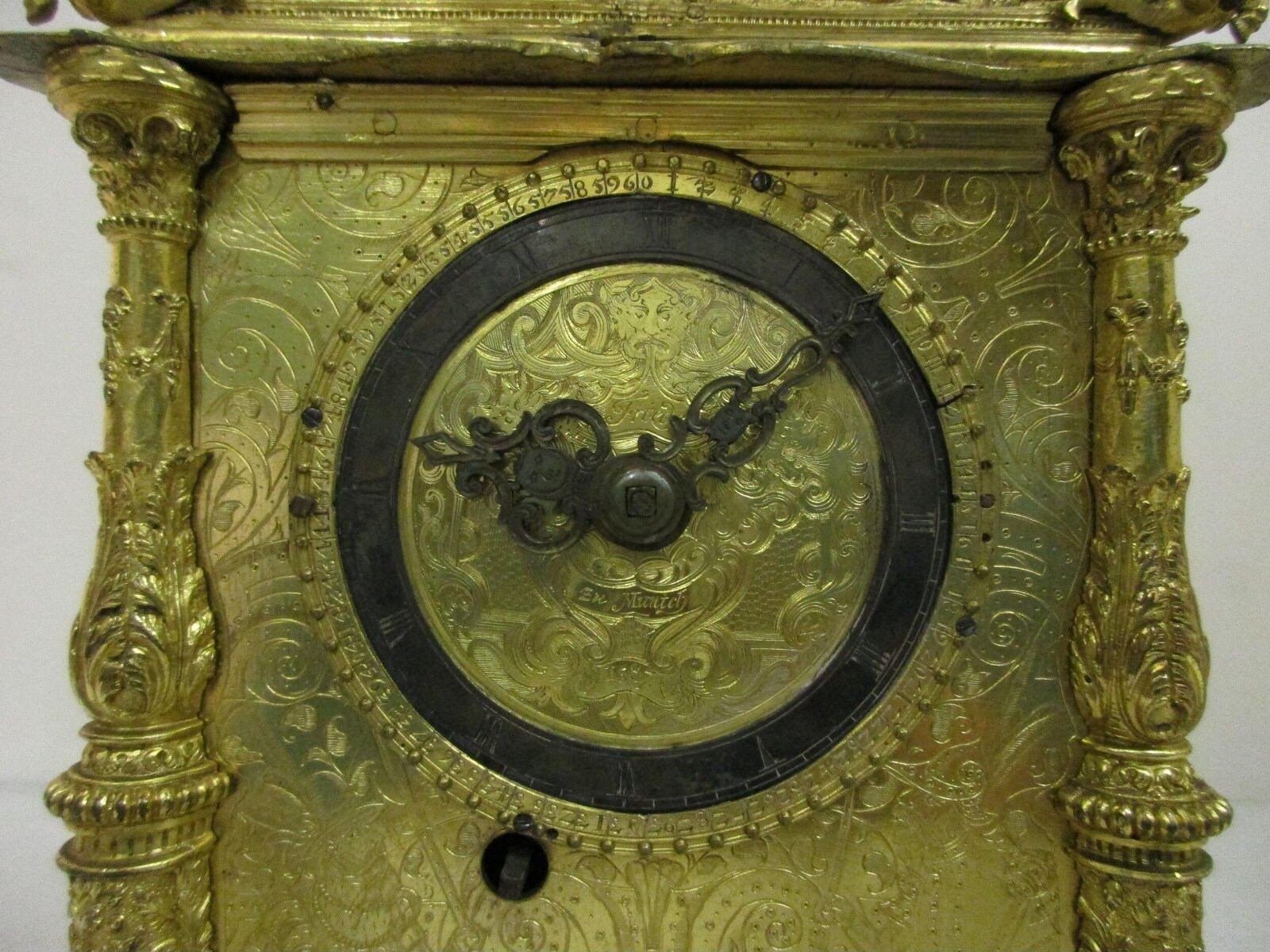

Above the cornice, a rectangular ogee-shaped cupola is pierced with interlaced foliage and birds. Dials: The Front dial is 8.9 cm in diameter. The outer minute ring with a touch pin for each number; inside this; an inset silver chapter-ring 0.6 cm broad with Roman numerals I-XII and minute marks (a later replacement). The central brass disc signed 'Friede En Munich 1587'. The hands are pierced brass. The rear dial is 10.2 cm diameter. The outer ring with I to XII in Roman numerals with touch points 1 to 24 in arabic inside. The central disc of the dial 6.3 cm inches diameter now missing, probably an astronomical dial. The hands are missing. Movement: The going train in the centre, now with brass wheels and anchor escapement. The crutch with pin and pendulum missing.
The fusee and chain wound through a gearing through a hole in the front plate. Drive to the hour-hand through reduction gearing from the fusee. Step-up drive to the minute hand. The drive to the rear dial now missing. In left part of the movement, locking-plate, striking rain, placed transversely, with brass barrel, iron fusee and chain and iron wheels. Brass count wheel and click, probably somewhat later replacements. Striking on larger bell. In right part of movement; chime train, also transverse, with brass barrel, iron fusee, chain and wheels. Chiming on smaller bell. Brass count-wheel, probably later replacement. Probablyu a former alarm train at lower left of movement. Striking winding hole marked S; quarter chime wind hole marked V
Evidence at a glance
- Linked sources
- 1
- Photograph views
- 4
- Catalogue references
- 0
Counts describe this entry’s documentation, not authenticity, rarity or completeness. Photographs may show one specimen; check each caption and licence.
Historical context
Nothing is known of the clock's early owners. It was acquired by the lawyer, politician and collector Ralph Bernal. Following his death in 1854, the clock was bought by the Museum on the 29th day of the sale of Bernal's large and important art collection in 1855. The shape of the clock case is characteristic of those made in the second half of the 16th century in Augsburg, Nuremberg, Munich and Vienna.
The rectangular plan; the profiled base, ornamental reliefs, richly ornamented columns with cylindrical and baluster segments and the sculpturally worked pierced cupola (although this too may be a replacement). (The clock by Hans Gasteiger, 1562-3 from the Munich collection of Alfred Pringsheim Sotheby's London 2 July 2013 provides an interesting comparison.
The strapwork decoration and the engravings of the Liberal Arts are likely to be contemporary. The finial figure of Fortuna is a later marriage as it is too large in proportion to the case. It is probably that the case is made up from several 16th century clock cases - the dial would not normally touch the top of the case. Lorenz Seelig has suggested that the clock may have been made in Munich.
The inscription 'Friede En Munich 1587' indicates that 'it is peaceful in Munich in 1587' during the reign of duke Wilhelm V known as the 'Pious'. In 1583 the Wittelsbach dynasty conquered the 'Erzstift' the secular territory of the archbishopric of Cologne - thus the 'war of Cologne' ended and duke Ernst of Bavaria, younger brother of duke Wilhelm V, became elector and archbishop of Cologne.
William V tried to establish a confederation of Catholic German princes and territories including Protestant representatives in 1587; which did not succeed. Provenance
Physical characteristics
- Material
- Gilt copper alloy, cast, chased and engraved
- Dimensions
- Height: 34.2 cm; Width: 20.3 cm; Depth: 15.1 cm; Weight: 5367.8 g
Technical characteristics
- Place recorded
- Southern Germany, Munich
Design
- Marks and inscriptions
- Friede En Munich 1587
Identification
- Source note
- Transcribed from the Victoria and Albert Museum, London collection record for this single object (sentences kept verbatim apart from removed sale or rarity wording); how far it represents a wider collectible type has not been independently verified.
- Candidate id
- vam-O374928
- Museum object name
- Clock
- Holding institution
- Victoria and Albert Museum, London
- Museum object number
- 2379-1855
- Museum system number
- O374928
Catalogue references
No catalogue numbers recorded. Numbers are only published once transcribed from a verified edition of a standard catalogue — they are never inferred.
Research required
- Research required: confirm the wider type, maker and dating against a specialist reference; this entry documents one recorded example.
