Clock, long case, Benjamin Gray and Just Vulliamy, London, 1730
Record status
Individual type · partial
Period
c.1730
Gray, of Pall Mall, was clock-maker to George II. Vulliamy emigrated from Switzerland and settled in London early in the 18th century, entering into partnership with Gray. He married Gray's daughter and carried on the business after his death. The family of Vulliamy held the office of clockmaker to the reigning sovereign until the death of Benjamin Lewis Vulliamy in 1854. Case: Figured walnut.

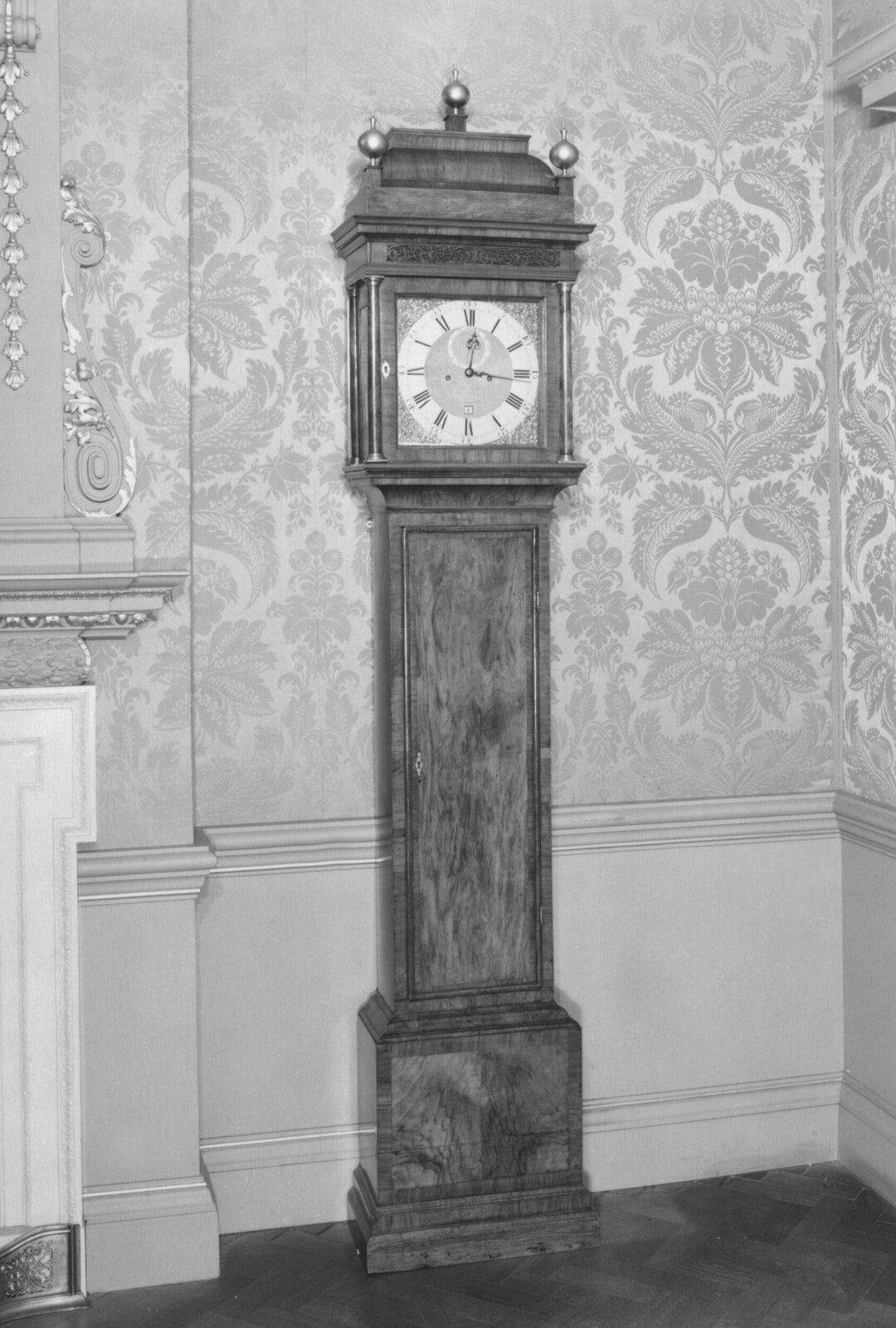

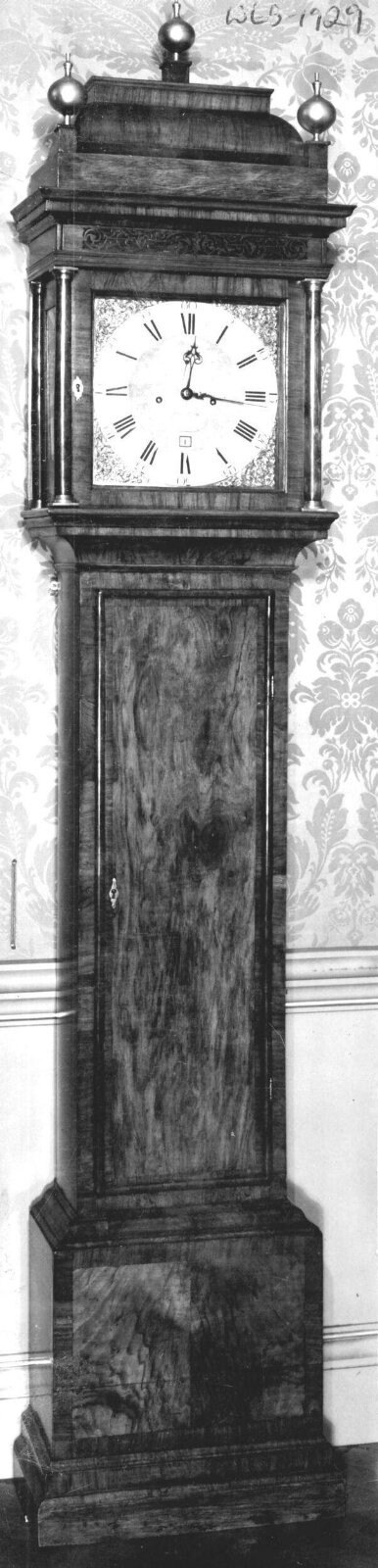

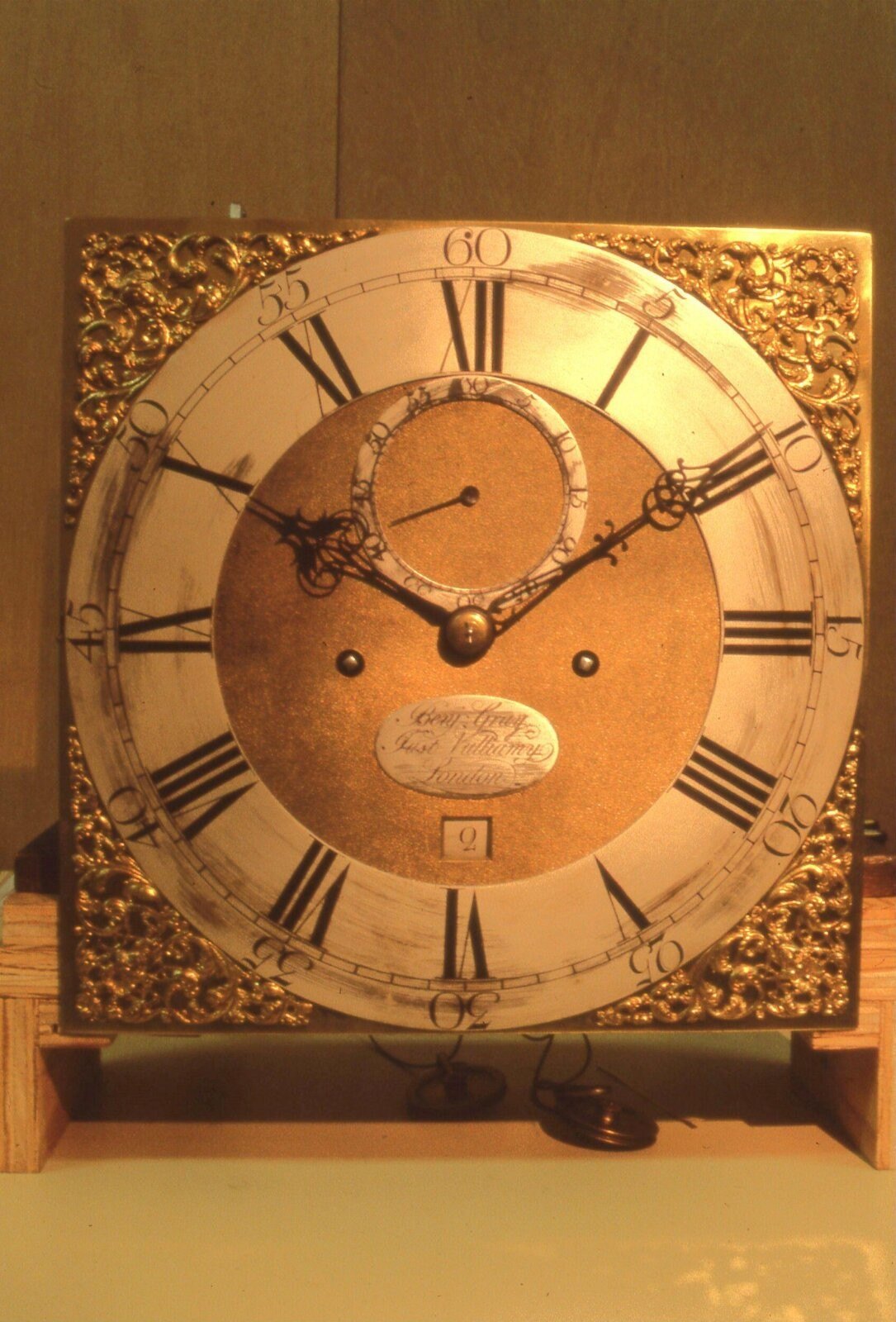

Rectangular trunk door with convex moulding to edge occupying most of trunk front, attached by decorative brass hinges on inside. Concave moulding below hood. Sliding hood with caddy top flanked by gilded wood finials mounted on short pedestals, a third finial similarly mounted top centre. Front of frieze with textile backed frets. Rectangular hinged square glazed door with applied brass capped columns at front, capped quarter columns to rear; glazed rectangular side apertures. Rectangular base above double plinth. Shaped front to seatboard behind dial. Dial: Brass, 12 inches square. Centre matted.
Square calendar aperture with slight bevelling to edges is located below silvered brass oval plaque pinned to dial centre, engraved Benj Gray / Just Vulliamy / London . Female head in foliage spandrels each secured by a single screw to dial corners. A cut out between the two proper left spandrels in dial plate edge accommodates steel piece of strike/silent lever; the lever, mounted on dial underside, prevents rack falling when set to ‘silent’ position. Pinned to the dial plate is the silvered brass chapter ring with engraved minute band, Arabic minute numerals at intervals of five and Roman hour numerals.
Pinned to the dial plate below "XII" is the subsidiary seconds ring of silvered brass with engraved seconds band, and at intervals of five, Arabic seconds numerals; its diameter is such that the lower portion is partially cut away to clear central hole for hands. A silvered brass ring with engraved Arabic numerals for the date (1-31) runs behind the dial on three brass pulleys, the lowest one of significantly larger diameter than others, itself having four semicircular crossings. Four dial feet attached to movement front plate by pinning. Hands: Pierced steel hour and minute and plain steel seconds hand. Movement:

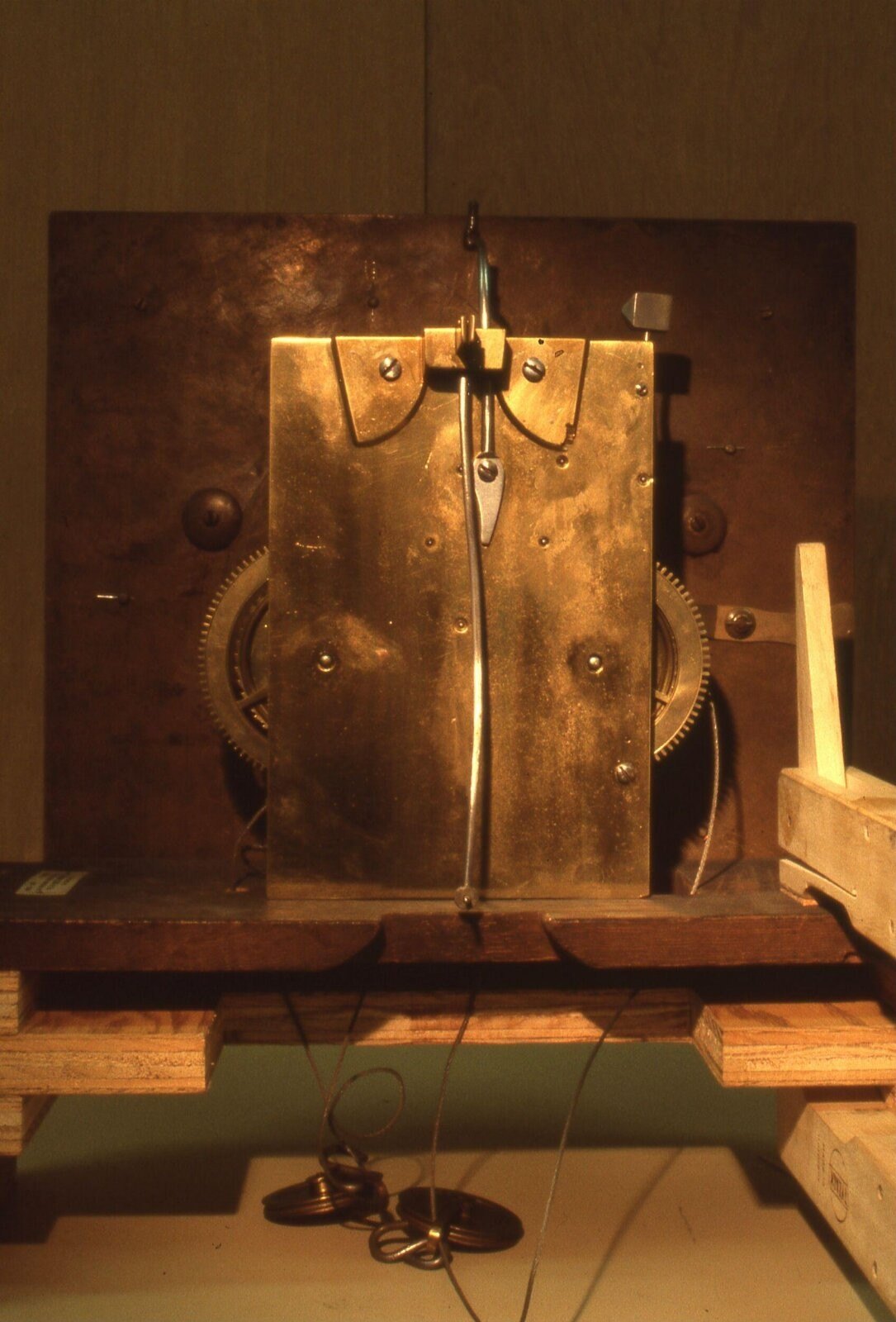

Brass and steel, weight driven, hour striking of 8-day duration with recoil escapement, pendulum regulated. Five pillars each with a central knop, riveted to the backplate, with four pinned to the frontplate. Fifth pillar, located lower centre of movement, latched at front. Hour striking on bell controlled by snail and rack, end of latter bent through ninety degrees to lock on gathering pallet. Brass train wheels with four semicircular crossings, cannon and minute wheels with three-spoked crossings, latter located to front plate by a cock. Where visible, Great, twenty four-hour and minute wheels with scribed lines; Great wheel with short marks flanking teeth roots. Double profiled wheel collets, the domed portion against wheel adjacent to short cylindrical portion along arbor.
Barrel profiled arbors with comparatively short pinion heads. Steel recoil pallets with short vertical stalk, span 9½ teeth of escape wheel. Pallets mounted on pallet arbor by brass collet; oval section steel crutch. Substantial backcock occupies about three-quarters width of backplate. Bevelled edges to certain brass components e.g. bridges and cocks. Steel barrel ratchet clicks with bevelled tail and slight carved detailing. Brass-faced pendulum bob is supported on a frustum-shaped rating nut with engraved Arabic calibration numerals. Description and notes by Francis Brodie, c. 2008
Evidence at a glance
- Linked sources
- 1
- Photograph views
- 4
- Catalogue references
- 0
Counts describe this entry’s documentation, not authenticity, rarity or completeness. Photographs may show one specimen; check each caption and licence.
Historical context
Given by Mr SE Prestidge [RP 29/9094] Remarks: Whilst most makers adopted the break-arch dial and its associated case style during the course of the first quarter of the eighteenth century, a few, notably Tompion and Graham, retained the square dial format.
Gray and Vulliamy also chose not to adopt this format for W.65-1929 and a similar example was in the Wetherfield collection but without a caddy to the hood, and is dated c.1760 (Rose, R.E., English Dial Clocks, Woodbridge, 1988).
Later clocks were numbered but with one exception (c.1777), the earliest numbering of the clocks stared in 1785, possibly after F.J. Vuliiamy succeeded Benjamin Gray (Edwards, E., The Grandfather Clock, Alchrincham, 1949). W.65-1929 appears to be un-numbered.
The dial and movement are of a style that would not be out of place in the mid-eighteenth century, including the absence of the quarter-hour scale, half-hour markers and large seconds ring, the plain, knopped pillars and double profiled collets. The rack striking, being of the standard pallet tail locking variety, is another pointer of settled clockmaking practice.
The minute hand appears anomalous and is assumed to be a replacement. Vulliamy was known to buy movements in form such makers as Bullock, Jackson and later Holmden. When this started is unclear and may not be the case for the earlier clocks (Edwards, E., The Grandfather Clock, Alchrincham, 1949).
Certain features of this clock indicative good quality work such as the latched front plate, the crossed out cannon and minute wheels, the minute wheel being located by a cock, the engraved rating nut, the bevelling of some brass and steel work, and the shaping of the seatboard front.
Physical characteristics
- Material
- Figured walnut
- Dimensions
- Height: 247.5 cm; Width: 51.6 cm; Depth: 25 cm; Weight: 6 kg
Technical characteristics
- Maker recorded
- Gray, Benjamin; Vulliamy, François Justin
- Place recorded
- London
Identification
- Source note
- Transcribed from the Victoria and Albert Museum, London collection record for this single object (sentences kept verbatim apart from removed sale or rarity wording); how far it represents a wider collectible type has not been independently verified.
- Candidate id
- vam-O60665
- Museum object name
- Clock
- Holding institution
- Victoria and Albert Museum, London
- Museum object number
- W.65:1 to 6-1929
- Museum system number
- O60665
Catalogue references
No catalogue numbers recorded. Numbers are only published once transcribed from a verified edition of a standard catalogue — they are never inferred.
Research required
- Research required: confirm the wider type, maker and dating against a specialist reference; this entry documents one recorded example.
